Creating a Python module for the Beurer BM 65 blood pressure monitor (Part II)

In my last blog post, I reverse engineered most of the USB protocol of the Beurer BM 65 blood pressure monitor. The only thing left was the first byte in each 9-bytes-measurement. I figured it was probably some status bits about detected cardiac arrhythmia. But that just isn’t good enough. I want total knowledge of the protocol, damn it!

We could perhaps reverse engineer the meaning of this byte too by trying all possible values of the first byte against the data downloader in Beurer Health Manager. Then it would be a simple comparison between the byte-value and the reaction. We already know that 0xAC means a normal reading. But what about the other 255 possibilities?

I came up with a few different ways of determining this:

  • Fake/make a measurement with cardiac arrhythmia using the actual device. I just don’t know how easy it is to fool it. And even if we succeed, we would still have incomplete knowledge about the first byte.
  • Use API Monitor to intercept the relevant ReadFile API call and change 0xAC to something else. This is the simplest approach, but very manual and tedious.
  • Program an Arduino to simulate the device. Remember that the Health Manager program spams all COM ports until it gets a response. A fun fact here is that while the program does check for the presence of the Prolific 2303 driver, it’ll happily try any old COM port. And an Arduino would be easy to program in such a way that it reacts like the real device. Besides, this approach would also yield the most Blogosphere points..
  • Implement a fake virtual COM port in Windows. With this, one can simulate the device in software.
  • Use a decompiler to inspect the code within Health Manager itself. All this reverse engineering would have been easier altogether if I’d just done this in the first place. But it feels like cheating. Let’s get back to this one later..

After a bit of consideration, I chose the approach with the virtual COM port. However, instead of creating a virtual COM port driver from scratch, I’m using the com0com project. It creates two virtual COM ports and links them, acting like a null-modem. Then I can code the actual logic in plain Python.

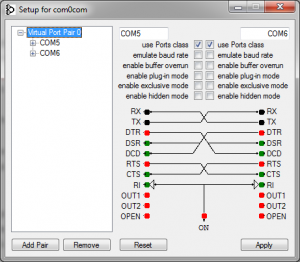

Virtual null-modem between virtual COM ports

Virtual null-modem between virtual COM ports

By default, Windows 7 x64 requires signed kernel-mode drivers, and the com0com driver is only test signed. Fortunately, this security limitation can be easily removed. I then linked the virtual COM ports 5 and 6. Health Manager will try them in ascending order, so by attaching my Python code to COM6, I could fool Health Manager into believing there’s a blood pressure monitor on COM5.

And now for a bit of good news followed by a bit of bad news.. The good news is that my scheme of setting up this virtual null-modem works like a charm! Health Manager is easily fooled into believing that it’s communicating with a real device on COM5. However, the bad news is that after iterating through all combinations for the first byte in the 9-byte measurements, my Python script only triggered a new reaction from Health Manager with the value 0xA9 (169). And this reaction was to reject the entire data transfer! Not a single cardiac arrhythmia-indicating result was reported. Hmm.. That’s unexpected..

Finally, I succumbed to my curiosity and disassembled the Health Manager binary using ILSpy, It’s just regular .NET code. After a bit of digging, I could confirm my new findings. While the first measurement byte (called the header) is recorded, it is never used except for rejecting the transfer if it’s equal to 0xA9. Bummer..

Well.. You can’t win them all..

Creating a Python module for the Beurer BM 65 blood pressure monitor (Part I)

So, I just bought a brand spanking new blood pressure monitor. My wife is a nurse and we have been talking about getting one for some time. After browsing the market, we settled on a Beurer BM 65. It is a very nice piece of kit and it comes with a USB plug for PC connectivity. Exciting, right? Unfortunately, the software is Windows-only. Bummer..

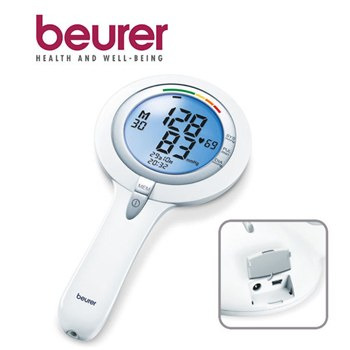

Beurer BM 65

Beurer BM 65

Well, then it’s obviously my duty to reverse-engineer it. Let’s get started then! A quick Google search tells me that others have had success with the Beurer PM70 (a heart rate monitor) and success with the Beurer BG64 (a diagnostic scale). They seem to use different protocols, though.

Reverse engineering the protocol

When the BM 65 is plugged in, it enumerates as 067B:2303, which is a Prolific Technology PL-2303 USB-to-serial controller. Interesting.. The problem is therefore reduced to guessing the serial protocol it uses.

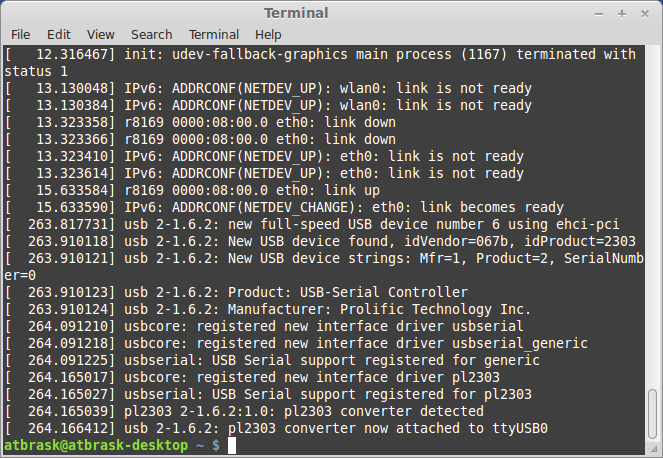

Output from dmesg

Output from dmesg

On my Linux box it gets mapped to /dev/ttyUSB0 with no issues, as this chip is supported in the kernel. But how to communicate with it? We need to sniff the protocol… Beurer provides a free Windows-only tool called Health Manager for communicating with the device, as well as a subset of their other products. Luckily, it’s possible to eavesdrop on serial ports in Windows, and my gaming rig runs Windows 7. There is a SysInternals tool for this called Portmon, but it seems to work very poorly on Win7 x64. Next, I tried a tool called API Monitor v2. As the communication with the device is through a fake serial port, we should be able to sniff the relevant Windows API calls.

Lo and behold! It works! It seems that SetCommState in Kernel32.dll is used to configure the COM port (4800 baud 8N1).

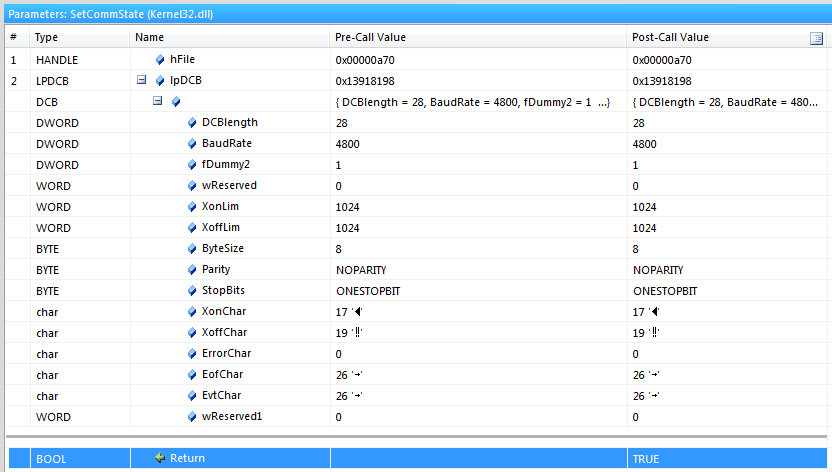

4800baud

The SetCommState call where the serial connection is set up to 4800 baud 8N1.

Let’s then see if we can deduce the actual communication.. After some digging around I successfully limited the captured API calls to just the file I/O stuff in Kernel32.dll. The Health Manager tool tries all available COM ports until it gets a correct response. After that, we just have to follow the yellow brick road of WriteFile and ReadFile API calls. It only writes 1 or 2 bytes per call (depending on the command) and all reads are single byte reads.

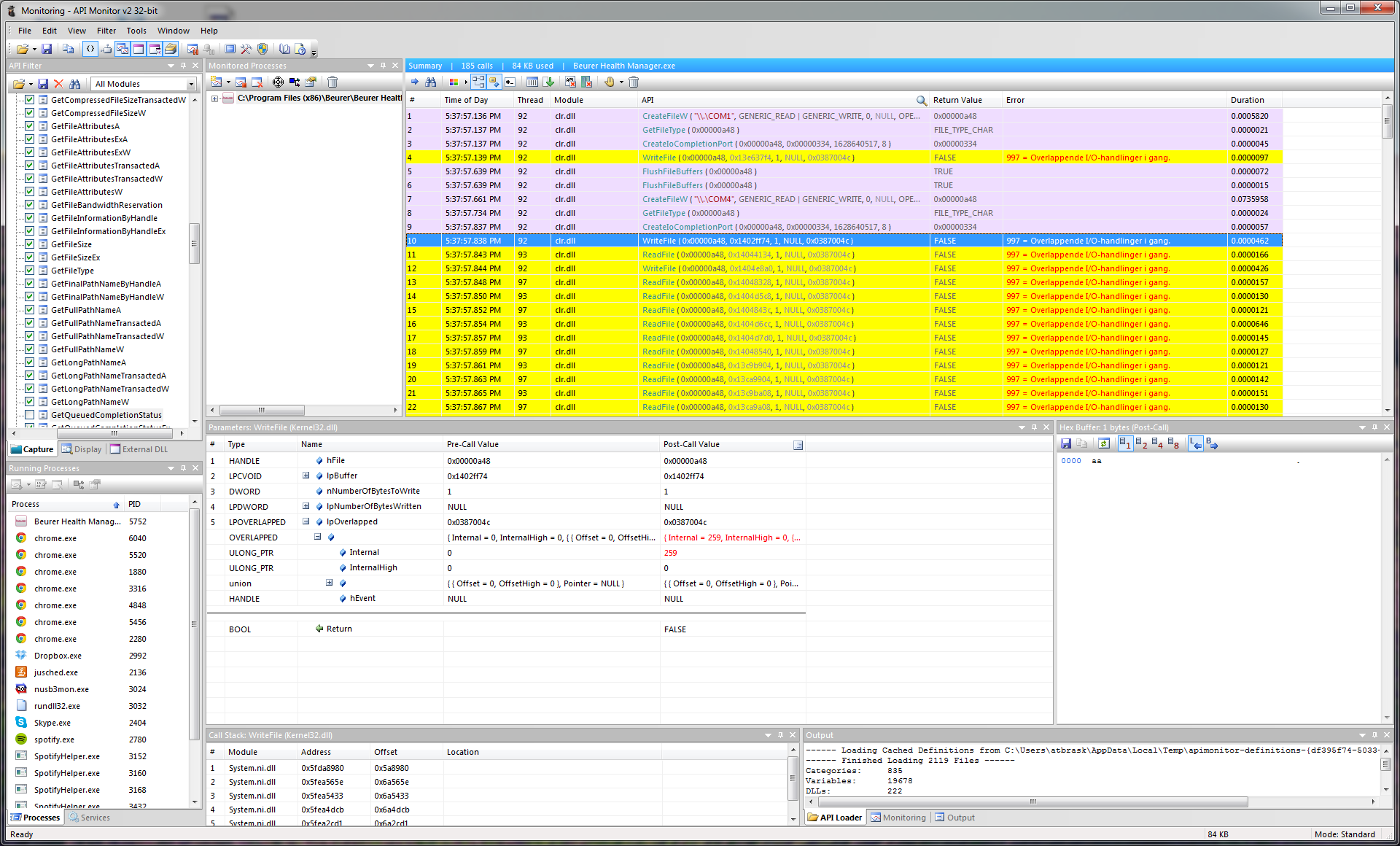

Serial data transfer

Serial data transfer

This API Monitor tool is a bit tedious for this, so I tried Serial Port Monitor by Eltima Software instead. It is a shareware program with a 14 day trial, but that’s enough for this purpose. A serial dump of a sequence of 3 measurements looks something like this:

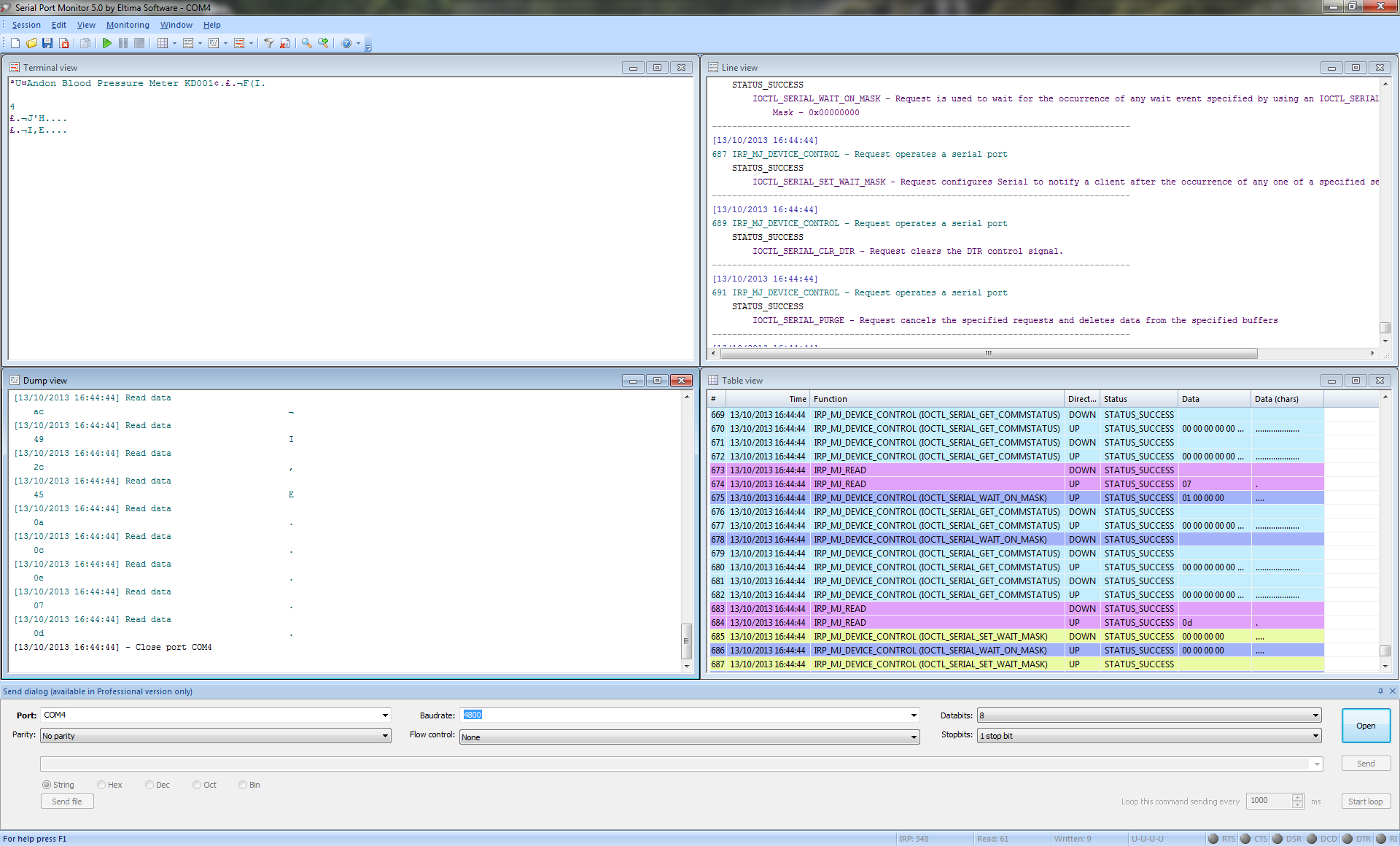

Captured serial communication

Captured serial communication

In table form, transferring a set of three measurements goes like this:

Sent to deviceReceived from deviceMy interpretation
0xAAPing?
0x55Pong!
0xA4Get description
"Andon Blood Pressure Meter KD001"Device description
0xA2How many measurements?
0x033 measurements!
0xA3 0x01Get measurement 1
0xAC 0x66 0x37 0x4E 0x0A 0x11 0x16 0x2A 0x0DMeasurement 1!
0xA3 0x02Get measurement 2
0xAC 0x62 0x35 0x5F 0x0A 0x0E 0x12 0x0C 0x0DMeasurement 2!
0xA3 0x03Get measurement 3
0xAC 0x64 0x3D 0x55 0x0A 0x0C 0x0E 0x09 0x0DMeasurement 3!

After the last byte, the connection is terminated. Apparently, this device is made by a company called Andon. And it seems that it only transmits data about a single user at a time. Let’s have a look at a single measurement:

Byte valueMy interpretationDescription
0xAC0b10101100Status bits? Magic number?
0x66102 + 25 = 127 mmHgSystolic blood pressure (offset by 25)
0x3755 + 25 = 80 mmHgDiastolic blood pressure (offset by 25)
0x4E78 BPMPulse
0x0A10 = OctoberMonth
0x1117Day of month
0x1622Hours
0x2A42Minutes
0x0D13 = 2013Year

And Bob’s your uncle! We have now successfully reverse engineered the protocol. Well.. Almost.. I haven’t got a clue about the first byte of each measurement. It might be a magic number, but it’s probably some status bits. Besides blood pressure and pulse, the device also registers cardiac arrhythmia. If this information is recorded and if a measurement is always 9 bytes, it would have to be stored in these bits.

I mentioned that the device seemed to be made by Andon. After a bit of digging, I found some evidence for this. The document from dabl Educational Trust says:

“Andon is an OEM manufacturer for the BM 65. Despite the different designs, the BM 65 is functionally the same as the Andon KD-5915 with added dual user, averaging and uploading features but without the voiced results.”

It seems that some of the other Andon devices also support USB. I wonder if the protocol is the same as for the BM 65?

Implementing a Python module for the Beurer BM 65

Let’s make a rudimentary data downloader in Python using our newly acquired knowledge about the protocol. I’m using Python 2.7 on a reasonably new Linux Mint installation. The code is reasonably basic, omitting any kind of error handling.

For those who don’t want to copy code from here, you can also pull a copy from GitHub.

Disclaimer:
The code is free to use, but do so at your own risk.
If you brick your device, it’s not my problem.

import sys, serial

class Measurement(object):
    def __init__(self, data):
        self.header = data[0]
        self.systolic = data[1] + 25
        self.diastolic = data[2] + 25
        self.pulse =  data[3]
        self.month = data[4]
        self.day = data[5]
        self.hours = data[6]
        self.minutes = data[7]
        self.year = data[8] + 2000
        self.time = "{0}-{1:02}-{2:02} {3:02}:{4:02}".format(self.year,
                                                             self.month,
                                                             self.day,
                                                             self.hours,
                                                             self.minutes)

    def getBytes(self):
        return [self.header,
                self.systolic - 25,
                self.diastolic - 25,
                self.pulse,
                self.month,
                self.day,
                self.hours,
                self.minutes,
                self.year - 2000]

    def __repr__(self):
        hexBytes = ['0x{0:02X}'.format(byte) for byte in self.getBytes()]
        return "Measurement([{0}])".format(', '.join(hexBytes))

    def __str__(self):
        return "\n".join(["Header byte        : 0x{0:02X}",
                          "Time               : {1}",
                          "Systolic pressure  : {2} mmHg",
                          "Diastolic pressure : {3} mmHg",
                          "Pulse              : {4} BPM"]).format(self.header,
                                                                  self.time,
                                                                  self.systolic,
                                                                  self.diastolic,
                                                                  self.pulse)

class BeurerBM65(object):
    def __init__(self, port):
        self.port = port

    def sendBytes(self, connection, byteList, responseLength = 1):
        connection.write(''.join([chr(byte) for byte in byteList]))
        response = connection.read(responseLength)
        return [ord(char) for char in response]

    def bytesToString(self, bytes):
        return "".join([chr(byte) for byte in bytes])

    def getMeasurements(self):
        ser = serial.Serial(
            port = self.port,
            baudrate = 4800,
            parity = serial.PARITY_NONE,
            stopbits = serial.STOPBITS_ONE,
            bytesize = serial.EIGHTBITS,
            timeout = 1)

        pong = self.sendBytes(ser, [0xAA])
        print "Sent ping. Expected 0x55, got {0}".format(hex(pong[0]))

        description = self.bytesToString(self.sendBytes(ser, [0xA4], 32))
        print "Requested device description. Got '{0}'".format(description)

        measurementCount = self.sendBytes(ser, [0xA2])[0]
        print "Found {0} measurement(s)...".format(measurementCount)

        for idx in range(measurementCount):
            yield Measurement(self.sendBytes(ser, [0xA3, idx + 1], 9))

        print "Done. Closing connection..."
        ser.close()

if __name__ == "__main__":
    conn = BeurerBM65(sys.argv[1])
    for idx, measurement in enumerate(conn.getMeasurements()):
        print ""
        print "MEASUREMENT {0}".format(idx + 1)
        print measurement
